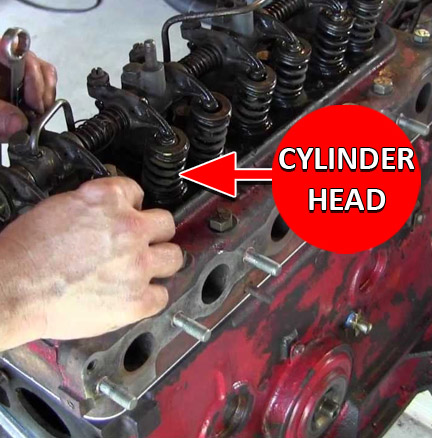

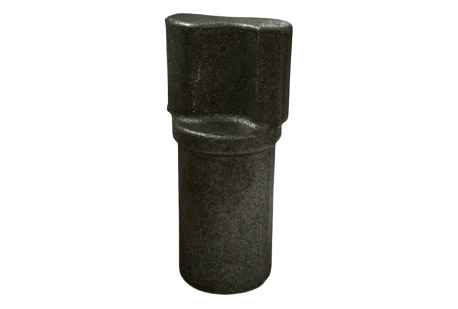

Cylinder Head
Usage / Application | Tractor Linkage Parts | |
Type of Part | Linkage Accessory | |
Model Name / Number | Tractor Linkage Parts | |
HSN Code | 8708 |
|
Size | As per customer requirement | |
Application | Tractor Linkage Parts |
Specification Table
ART. | CAT D1 -D2 | PIPE L1 | THREAD D | MM >----< | MM <----> |
SF001 | 0 – 0 | 7.1/2” | 3 / 4 UNC | 11” | 16.3/8” |
SF002 | 0 – 0 | 9.3/4/” | 3 / 4 UNC | 13.3/8” | 18.5/8” |
SF003 | 1 – 1 | 7” | 1.1/8 UNC | 11.5/8” | 14.3/4” |
SF004 | 1 – 2 | 7” | 1.1/8 UNC | 11.3/4” | 15” |
SF005 | 2 – 2 | 7” | 1.1/8 UNC | 12” | 15.1/8” |
SF006 | 1 – 1 | 9” | 1.1/8 UNC | 13.5/8” | 18.3/4” |
SF007 | 1 – 2 | 9” | 1.1/8 UNC | 13.3/4” | 19” |
SF008 | 2 – 2 | 9” | 1.1/8 UNC | 14” | 19.1/4” |
SF009 | 1 – 1 | 11.1/4” | 1.1/8 UNC | 16” | 24” |
SF010 | 1 – 2 | 11.1/4” | 1.1/8 UNC | 16.3/8” | 24.1/4” |
SF011 | 2 – 2 | 11.1/4” | 1.1/8 UNC | 16.1/2” | 24.3/8” |
SF012 | 1 – 1 | 13” | 1.1/8 UNC | 17.1/2” | 26.3/4” |
SF013 | 1 – 2 | 13” | 1.1/8 UNC | 17.3/4” | 27” |
SF014 | 2 – 2 | 13” | 1.1/8 UNC | 18.1/8” | 27.1/8” |
SF015 | 1 – 1 | 14.1/2” | 1.1/8 UNC | 19” | 27” |
SF016 | 1 – 2 | 14.1/2” | 1.1/8 UNC | 19.1/2” | 27.1/8” |
SF017 | 2 – 2 | 14.1/2” | 1.1/8 UNC | 20” | 31.1/2” |
SF018 | 1 – 1 | 16” | 1.1/8 UNC | 20.1/2” | 28” |
SF019 | 1 – 2 | 16” | 1.1/8 UNC | 20.3/4” | 28.3/8” |
SF020 | 2 – 2 | 16” | 1.1/8 UNC | 21” | 32.1/2” |
SF021 | 1 – 1 | 17.1/4” | 1.1/8 UNC | 21.5/8” | 29.3/8” |
SF022 | 1 – 2 | 17.1/4” | 1.1/8 UNC | 22” | 29.1/2” |
SF023 | 2 – 2 | 17.1/4” | 1.1/8 UNC | 22.1/4” | 33.7/8” |
SF024 | 1 – 1 | 20” | 1.1/8 UNC | 24.3/8” | 32” |
SF025 | 1 – 2 | 20” | 1.1/8 UNC | 24.3/4” | 32.1/4” |
SF026 | 2 – 2 | 20” | 1.1/8 UNC | 25” | 36.3/8” |
SF027 | 1 – 1 | 24” | 1.1/8 UNC | 28.1/2” | 36” |
SF028 | 1 – 2 | 24” | 1.1/8 UNC | 28.3/4” | 36.1/4” |
SF029 | 2 – 2 | 24” | 1.1/8 UNC | 28.7/8” | 40.1/2” |
SF030 | 2 – 2 | 15” | 1.1/4 UNC | 20” | 30.7/8” |
SF031 | 2 – 2 | 19” | 1.1/4 UNC | 24” | 35.1/4” |
TOP LINK ASSEMBLY (METRIC) | |||
ART. | CAT d1 - d2 | PIPE L1 (MM) | THREAD D |
THREAD M 20X 2.5 | |||
SF031 | 0-0 (16) | 190 | M20X2.5 |
SF032 | 0-0 (16) | 250 | M20X2.5 |
SF033 | 0-0 (16) | 400 | M20X2.5 |
THREAD M 22 X 2.5 | |||
SF034 | 1-1 | 120 | M22X2.5 |
SF035 | 1-1 | 160 | M22X2.5 |
SF036 | 1-1 | 180 | M22X2.5 |
SF037 | 1-1 | 220 | M22X2.5 |
SF038 | 1-1 | 230 | M22X2.5 |
SF039 | 1-1 | 300 | M22X2.5 |
SF040 | 1-1 | 320 | M22X2.5 |
THREAD M 24 X 2.5 | |||
SF041 | 1-1 | 120 | M24X2.5 |
SF042 | 1-1 | 140 | M24X2.5 |
SF043 | 1-1 | 150 | M24X2.5 |
SF044 | 1-1 | 165 | M24X2.5 |
SF045 | 1-1 | 180 | M24X2.5 |
SF046 | 1-1 | 200 | M24X2.5 |
SF047 | 1-1 | 245 | M24X2.5 |
SF048 | 1-1 | 280 | M24X2.5 |
SF049 | 1-1 | 300 | M24X2.5 |
SF050 | 1-1 | 320 | M24X2.5 |
SF051 | 1-1 | 370 | M24X2.5 |
SF052 | 1-1 | 400 | M24X2.5 |
THREAD M 24 X 3 | |||
SF053 | 1-1 | 120 | M24X3 |
SF054 | 1-1 | 140 | M24X3 |
SF055 | 1-1 | 150 | M24X3 |
SF056 | 1-1 | 165 | M24X3 |
SF057 | 1-1 | 180 | M24X3 |
SF058 | 1-1 | 200 | M24X3 |
SF059 | 1-1 | 230 | M24X3 |
SF060 | 1-1 | 250 | M24X3 |
SF061 | 1-1 | 270 | M24X3 |
SF062 | 1-1 | 300 | M24X3 |
SF063 | 1-1 | 330 | M24X3 |
SF064 | 1-1 | 370 | M24X3 |
SF065 | 1-1 | 400 | M24X3 |
THREAD 27 X 3 | |||
SF066 | 1-1 | 180 | M27X3 |
SF067 | 2-2 | 180 | M27X3 |
SF068 | 1-1 | 220 | M27X3 |
SF069 | 2-2 | 220 | M27X3 |
SF070 | 1-1 | 275 | M27X3 |
SF071 | 2-2 | 275 | M27X3 |
SF072 | 1-1 | 320 | M27X3 |
SF073 | 1-2 | 320 | M27X3 |
SF074 | 2-2 | 320 | M27X3 |
SF075 | 1-1 | 350 | M27X3 |
SF076 | 1-2 | 350 | M27X3 |
SF077 | 2-2 | 350 | M27X3 |
SF078 | 1-1 | 380 | M27X3 |
SF079 | 1-2 | 380 | M27X3 |
SF080 | 2-2 | 380 | M27X3 |
SF081 | 1-1 | 400 | M27X3 |
SF082 | 1-2 | 400 | M27X3 |
SF083 | 2-2 | 400 | M27X3 |
TOP LINK ASSEMBLY (METRIC) | |||
SF084 | 1-1 | 430 | M27X3 |
SF085 | 1-2 | 430 | M27X3 |
SF086 | 2-2 | 430 | M27X3 |
SF087 | 1-1 | 450 | M27X3 |
SF088 | 1-2 | 450 | M27X3 |
SF089 | 2-2 | 450 | M27X3 |
SF090 | 1-1 | 470 | M27X3 |
SF091 | 1-2 | 470 | M27X3 |
SF092 | 2-2 | 470 | M27X3 |
SF093 | 1-1 | 500 | M27X3 |
SF094 | 1-2 | 500 | M27X3 |
SF095 | 2-2 | 500 | M27X3 |
SF096 | 1-1 | 550 | M27X3 |
SF097 | 1-2 | 550 | M27X3 |
SF098 | 1-2 | 550 | M27X3 |
SF099 | 2-2 | 550 | M27X3 |
SF100 | 2-2 | 570 | M27X3 |
SF101 | 1-1 | 600 | M27X3 |
SF102 | 1-2 | 600 | M27X3 |
SF103 | 2-2 | 600 | M27X3 |
SF104 | 1-1 | 650 | M27X3 |
SF105 | 1-2 | 650 | M27X3 |
SF106 | 2-2 | 650 | M27X3 |
SF107 | 1-1 | 700 | M27X3 |
SF108 | 1-2 | 700 | M27X3 |
SF109 | 2-2 | 700 | M27X3 |
SF110 | 1-2 | 320 | M27X3 |
SF111 | 1-2 | 400 | M27X3 |
SF112 | 1-2 | 450 | M27X3 |
SF113 | 1-2 | 500 | M27X3 |
SF114 | 2-2 | 320 | M27X3 |
SF115 | 2-2 | 400 | M27X3 |
SF116 | 2-2 | 450 | M27X3 |
SF117 | 2-2 | 500 | M27X3 |
Specification Table
Top Link Assembly | |||
ART. | CAT d1 - d2 | PIPE L1 (MM) | THREAD D |
THREAD M 36 X 3 (Heavy Model) 80-Head | |||
SF174 | 2-2 | 350 | M36X3 |
SF175 | 2-2 | 380 | M36X3 |
SF176 | 2-2 | 400 | M36X3 |
SF177 | 2-2 | 460 | M36X3 |
SF178 | 2-2 | 520 | M36X3 |
SF175 | 2-2 | 570 | M36X3 |
SF176 | 2-2 | 580 | M36X3 |
SF177 | 2-2 | 600 | M36X3 |
SF178 | 2-2 | 640 | M36X3 |
SF179 | 2-2 | 700 | M36X3 |
SF180 | 2-2 | 800 | M36X3 |
SF181 | 2-2 | 900 | M36X3 |
SF182 | 2-2 | 1000 | M36X3 |
THREAD M 36 X 3 (Extra Heavy Model) 96-Head | |||
SF183 | 2-2 | 360 | M36X3 |
SF184 | 2-2 | 400 | M36X3 |
SF185 | 2-3 | 400 | M36X3 |
SF186 | 3-3 | 400 | M36X3 |
SF187 | 2-2 | 460 | M36X3 |
SF188 | 2-3 | 460 | M36X3 |
SF189 | 3-3 | 460 | M36X3 |
SF190 | 2-2 | 520 | M36X3 |
SF191 | 2-3 | 520 | M36X3 |
SF192 | 3-3 | 520 | M36X3 |
SF193 | 2-2 | 580 | M36X3 |
SF194 | 2-3 | 580 | M36X3 |
SF195 | 3-3 | 580 | M36X3 |
SF196 | 2-2 | 620 | M36X3 |
SF197 | 2-3 | 620 | M36X3 |
SF198 | 3-3 | 620 | M36X3 |
SF199 | 2-2 | 700 | M36X3 |
SF200 | 2-3 | 700 | M36X3 |
SF201 | 3-3 | 700 | M36X3 |
SF202 | 2-2 | 800 | M36X3 |
SF203 | 2-3 | 800 | M36X3 |
SF204 | 3-3 | 800 | M36X3 |
SF205 | 2-2 | 1000 | M36X3 |
SF206 | 2-3 | 1000 | M36X3 |
SF207 | 3-3 | 1000 | M36X3 |
THREAD M 40 X 3 (Heavy Model) 80-Head | |||
SF208 | 2-2 | 400 | M40X3 |
SF209 | 2-2 | 500 | M40X3 |
SF210 | 2-2 | 520 | M40X3 |
SF211 | 2-2 | 580 | M40X3 |
SF212 | 2-2 | 620 | M40X3 |
THREAD M 40 X 3 (Extra Heavy Model) 96-Head | |||
SF213 | 3-3 | 400 | M40X3 |
SF214 | 3-3 | 500 | M40X3 |
SF215 | 3-3 | 520 | M40X3 |
SF216 | 3-3 | 580 | M40X3 |
SF217 | 3-3 | 620 | M40X3 |
THREAD M 42 X 3 (Positive Handle Lock) 96-Head | |||
SF218 | 2-2 | 360 | M42X3 |
SF219 | 2-2 | 400 | M42X3 |
SF220 | 2-2 | 460 | M42X3 |
SF221 | 2-2 | 520 | M42X3 |
SF222 | 2-2 | 580 | M42X3 |
SF223 | 3-3 | 360 | M42X3 |
SF224 | 3-3 | 400 | M42X3 |
SF225 | 3-3 | 460 | M42X3 |
SF226 | 3-3 | 520 | M42X3 |
SF227 | 3-3 | 580 | M42X3 |
Specification Table
Top Link Asembly (Heavy duty) | |||
ART. | CAT d1-d2 | PIPE L1 (MM) | THREAD D |
THREAD M 30 X 3.5 (Positive Handle Lock) 80-Head | |||
SF144 | 2-2 | 360 | M30X3.5 |
SF145 | 2-2 | 400 | M30X3.5 |
SF146 | 2-2 | 460 | M30X3.5 |
SF147 | 2-2 | 520 | M30X3.5 |
SF148 | 2-2 | 580 | M30X3.5 |
SF149 | 2-2 | 640 | M30X3.5 |
SF150 | 2-2 | 700 | M30X3.5 |
SF151 | 2-2 | 800 | M30X3.5 |
SF152 | 2-2 | 230 | M30X3.5 |
SF153 | 2-2 | 270 | M30X3.5 |
SF154 | 2-2 | 370 | M30X3.5 |
SF155 | 2-2 | 560 | M30X3.5 |
Top Link Asembly (Heavy duty) | |||
( M 36x3 ) | |||
ART. | CAT d1-d2 |
PIPE L1 (MM) |
THREAD D |
SF156 | 2-2 | 400 | M36 X 3 |
SF157 | 2-3 | 400 | M36 X 3 |
SF158 | 2-2 | 460 | M36 X 3 |
SF159 | 2-3 | 460 | M36 X 3 |
SF160 | 2-2 | 480 | M36 X 3 |
SF161 | 2-3 | 480 | M36 X 3 |
SF162 | 2-2 | 440 | M36 X 3 |
SF163 | 28.4-2 | 440 | M36 X 3 |
SF164 | 3-3 | 440 | M36 X 3 |
SF165 | 2-2 | 520 | M36 X 3 |
SF166 | 2-3 | 520 | M36 X 3 |
SF167 | 3-3 | 520 | M36 X 3 |
SF168 | 2-2 | 580 | M36 X 3 |
SF169 | 2-3 | 580 | M36 X 3 |
SF170 | 3-3 | 580 | M36 X 3 |
SF171 | 2-2 | 620 | M36 X 3 |
SF172 | 2-3 | 620 | M36 X 3 |
SF173 | 3-3 | 620 | M36 X 3 |
Specification Table
Top Link Assemblies | |||||
THREAD M 30 X 3 (HEAVY DUTY PIPE) | |||||
ART. |
CAT D1 -D2 |
PIPE L1 |
THREAD D |
MM >----< |
MM <----> |
SF118 | 2 – 2 |
330 |
M30 X 3 |
460 |
700 |
SF119 | 2 – 2 |
370 |
M30 X 3 |
500 |
740 |
SF120 | 2 – 2 |
400 |
M30 X 3 |
530 |
770 |
SF121 | 2 – 2 |
450 |
M30 X 3 |
580 |
820 |
SF122 | 2 – 2 |
500 |
M30 X 3 |
630 |
870 |
SF123 | 2 – 2 |
600 |
M30 X 3 |
730 |
970 |
Specification Table
O.E.M TOP LINKS | |||||
ART. |
PIPE
A(MM) |
THREAD
B |
LH BALL ID/HT
(D1/H1) |
RH BALL ID/HT
(D2/H2) |
TYPE |
SF228 | 350 |
M24X3 |
25.4/51 |
25.4/51 |
1 |
SF229 | 400 |
M24X2 |
25.4/51 |
25.4/44 |
1 |
SF230 | 430 |
M24X2 |
25.4/51 |
19.0/44 |
1 |
SF231 | 430 |
M24X2 |
25.4/44 |
25.4/44 |
2 |
SF232 | 470 |
M30X3.5 |
25.4/51 |
25.4/51 |
3 |
SF233 | 470 |
M36X3 |
25.4/51 (80) |
25.4/51 (80) |
3 |
SF234 | 470 |
M36X3 |
32/51 (96) |
25.4/51 (80) |
3 |
