U-Bolts & Shackles
U-bolts
Specification Table
U-bolts
Specification Table
U-bolts
Specification Table
Drop Lock Pin Weld On Type
Specification Table
Drop Lock Pin With Long Screw
Specification Table
Usage / Application
Tractor Linkage Parts
Type of Part
Linkage Accessory
Model Name / Number
Tractor Linkage Parts
HSN Code
8708
Size
As per customer requirement
Application
Tractor Linkage Parts

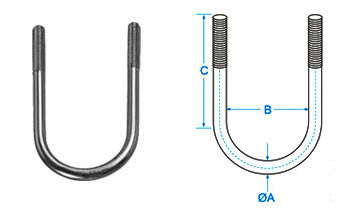

Specification Table
×
U-bolts
ART.
DIA.ØA
DIM.B
DIM.C
SF-UBOL 01
7/16"
2"
6"
SF-UBOL 02
7/16"
2-7/8"
7-3/4"
SF-UBOL 03
7/16"
3"
7-1/2"
SF-UBOL 04
1/2"
2-1/2"
8-1/4"
SF-UBOL 05
1/2"
2-7/8"
7"
SF-UBOL 06
1/2"
3"
8"
SF-UBOL 07
9/16"
3"
8-1/4"
SF-UBOL 08
9/16"
3-1/4"
8"
SF-UBOL 09
9/16"
3-3/8"
12"
SF-UBOL 10
5/8"
3"
8-1/2"
SF-UBOL 11
5/8"
3-1/4"
8-1/4"
PUBOL 12
5/8"
3-1/4"
12"

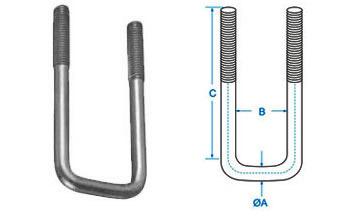

Specification Table
×
U-bolts
ART.
DIA.ØA
DIM.B
DIM.C
SF-UBOL13
3/8"
2-1/2"
2-1/2"
SF-UBOL14
3/8"
7"
7-1/2"
SF-UBOL15
1/2"
3"
4"
SF-UBOL16
5/8"
4"
4"
SF-UBOL17
5/8"
4"
5-1/2"
SF-UBOL18
5/8"
4"
7-1/2"
SF-UBOL19
5/8"
5"
8-1/2"
SF-UBOL20
5/8"
6"
8"
SF-UBOL21
5/8"
7"
5"
SF-UBOL22
5/8"
7"
7"
SF-UBOL23
5/8"
7"
8-1/2"
SF-UBOL24
3/4"
5"
7"
SF-UBOL25
3/4"
7"
8-1/2"
SF-UBOL26
3/4"
7"
7"
Specification Table
×
U-bolts
ART.
DIA.ØA mm
DIM.B mm
DIM.C mm
DIM.D mm
SF-UBOL27
11
70
37
42
SF-UBOL28
12.8
82
39
49
SF-UBOL29
11
90
30
56
SF-UBOL30
15
96
52
60.5

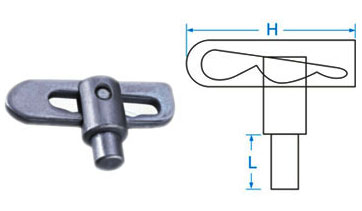

Specification Table
×
Drop Lock Pin Weld On Type
ART.
DIA. L mm
DIM. H mm
SF-DLP01
13
70

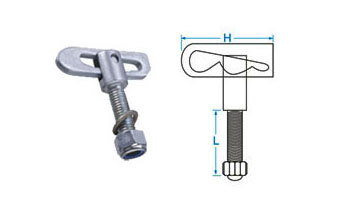

Specification Table
×
Drop Lock Pin With Long Screw
ART.
DIA. L mm
DIM. H mm
Thread
SF-DLP02
35
70
1/2” UNF
SF-DLP03
76
70
1/2” UNF
SF-DLP04
38
50
MB x 1.25
SF-DLP05
20
50
MB x 1.25
