Agriculture Parts
Top Link Assembly
Top Link End
Top Link Ball
Lower Link Ball
Weld on End
Linch Pins
Hitch Pins
PTO Pins/Shaft Pins
Levelling Assembly
Replacement/Tine Bushes
Hitch Balls
Guide Cone Ball
Top link Locking Collar
Top Link Pipe
Top Link Pins
Lower Link Pin
Double Implement/Mounting Pin
Hair Pin
Stablizer Assembly
Adjustable Levelling Arm
Ratchet Jack
Kubota Kits
U-Bolts & Shackles
Clevises
Eye End
Draw Bar
Trailer Jacks
Lower Link Assembly
Harrow Disc / Disc Blade
Plough Parts
Y - Shaft
Cylinder Head

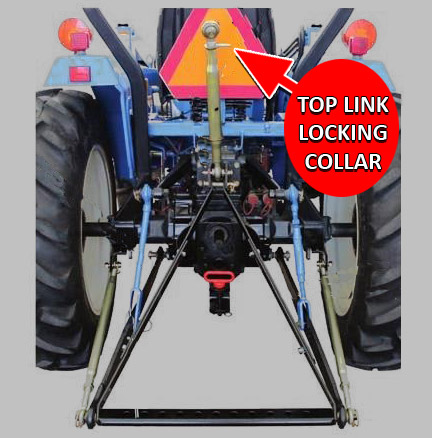

Top link Locking Collar
TOP LINK LOCKING COLLAR
(FORGED)
Specification Table
TOP LINK LOCKING COLLAR
(PLATE)
Specification Table
GREASE
NIPPLES
Specification Table
Usage / Application
Tractor Linkage Parts
Type of Part
Linkage Accessory
Model Name / Number
Tractor Linkage Parts
HSN Code
8708
Size
As per customer requirement
Application
Tractor Linkage Parts
Specification Table
×

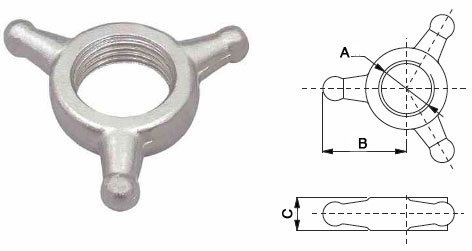

TOP LINK LOCKING COLLAR (FORGED)
ART.
A
B
C
SF-LOCL273F
M27X3
45
18
SF-LOCL303F
M30X3
45
18
SF-LOCL3035F
M30X3.5
45
18
SF-LOCL363F
M36X3
50
15
SF-LOCL403F
M40X3
50
15
SF-LOCL423F
M42X3
50
15
Specification Table
×

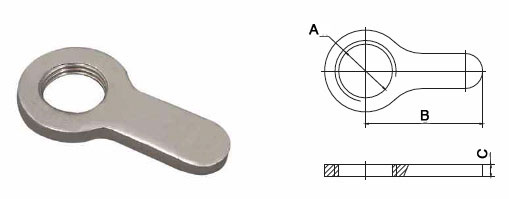

TOP LINK LOCKING COLLAR (PLATE)
ART.
A
B
C
SF-LOCL2225P
M22X2.5
60
6
SF-LOCL2425P
M24X2.5
60
6
SF-LOCL243P
M24X3
60
6
SF-LOCL273P
M27X3
60
6
SF-LOCL303P
M30X3
60
6
SF-LOCL3035P
M30X3.5
60
6
SF-LOCL363P
M36X3
88
10
SF-LOCL403P
M40X3
88
10
Specification Table
×

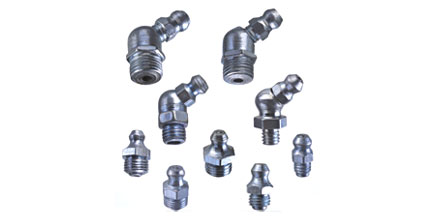

GREASE NIPPLES
ART.
Size
Type
SF-GNIP01
M6X1
STRAIGHT
SF-GNIP02
M8X1
STRAIGHT
SF-GNIP03
M10X1
STRAIGHT
SF-GNIP04
M6X1
45
SF-GNIP05
M8X1
45
SF-GNIP06
M10X1
45
SF-GNIP07
M6X1
90
SF-GNIP08
M8X1
90
SF-GNIP09
M10X1
90
