Eye End

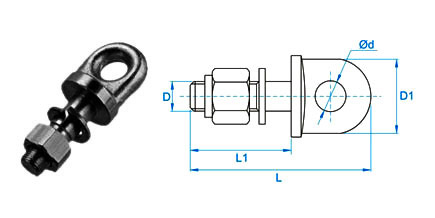

EYE END (Type A)
Specification Table

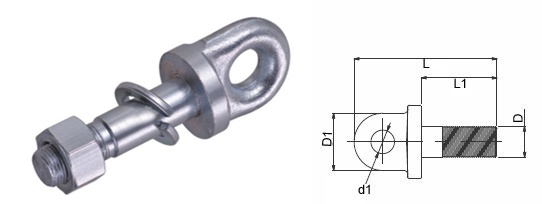

EYE END (Type B)
Specification Table

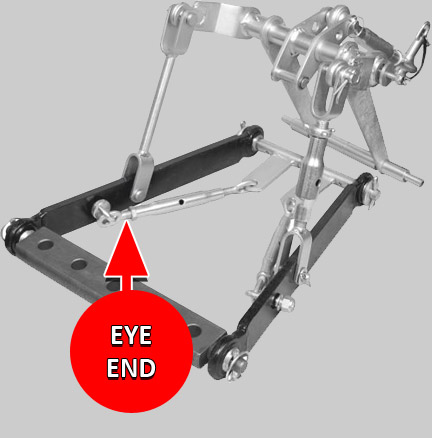

Usage / Application
Tractor Linkage Parts
Type of Part
Linkage Accessory
Model Name / Number
Tractor Linkage Parts
HSN Code
8708
Size
As per customer requirement
Application
Tractor Linkage Parts
Specification Table
×
EYE END
ART.
D
L
DIA-d
D1
L1
SF-EE 16
M16X1.5
80
15
36
43
SF-EE 18
M18X1.5
80
15
36
43
SF-EE 20
M20X2.5
100
18
40
60
SF-EE 20A
M20X2.5
125
20
53
65
SF-EE 24
M24X2
125
24
53
65
Specification Table
×
EYE END (Type B)
ART.
D
L
DIA-d
D1
L1
SF-EE 20B
M20X2.5
125
20
42
65
SF-EE 24B
M24X2
125
24
42
65
