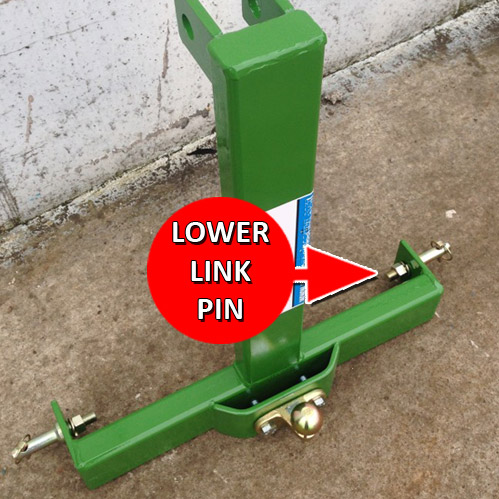

Lower Link Pin
Usage / Application | Tractor Linkage Parts | |
Type of Part | Linkage Accessory | |
Model Name / Number | Tractor Linkage Parts | |
HSN Code | 8708 |
|
Size | As per customer requirement | |
Application | Tractor Linkage Parts |

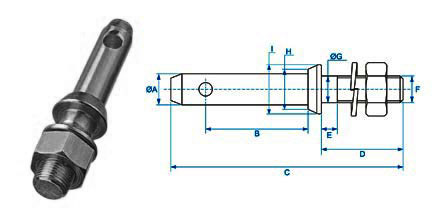

Specification Table
Lower Link Pin | |||||||||
Perno Per Attacco Attrezzi | |||||||||
ART. | A | B | C | D | E | F | G | H | I |
SF-LLP2201M | 22 | 50 | 130 | 40 | 5 | 20x1.5 | 20 | 32 | 38 |
SF-LLP2202M | 22 | 50 | 140 | 40 | 14 | 22x1.5 | 22 | 20 | 38 |
SF-LLP2203M | 22 | 50 | 140 | 40 | 14 | 22x1.5 | 28 | 30 | 38 |
SF-LLP2204U | 22 | 51 | 149 | 54 | 11 | 7/8”UNF | 22 | 30 | 36 |
SF-LLP2205U | 22 | 51 | 140 | 48 | 6 | 3/4”UNF | 19 | 30 | 36 |
SF-LLP2206U | 22 | 51 | 140 | 43 | 11 | 5/8”UNF | 22 | 30 | 36 |
SF-LLP2207U | 22 | 51 | 146 | 38 | 22 | 7/8”UNF | 28.6 | 30 | 36 |
SF-LLP2208U | 22 | 51 | 146 | 50.8 | 9.5 | 7/8”UNC | 28.6 | 32 | 38 |
SF-LLP2209U | 22 | 51 | 146 | 50.8 | 9.5 | 1”UNF | 25.4 | 30 | 36 |
SF-LLP2210U | 22 | 51 | 138 | 38 | 14 | 7/8”UNF | 28.6 | 30 | 36 |
SF-LLP2211M | 22 | 51 | 128 | 38 | 10 | 20x1.5 | 20 | 30 | 36 |
SF-LLP2212M | 22 | 51 | 128 | 38 | 10 | 20x1.5 | 20 | 30 | 36 |
SF-LLP2213M | 22 | 60 | 150 | 40 | 20 | 22x1.5 | 22 | 32 | 38 |
SF-LLP2214M | 22 | 60 | 150 | 40 | 20 | 22x1.5 | 28 | 32 | 38 |
SF-LLP2215M | 22 | 60 | 146 | 40 | 20 | 22x1.5 | 25 | 32 | 32 |
SF-LLP2216U | 22 | 51 | 140 | 45 | 10 | 7/8”UNF | 22 | 30 | 34 |
SF-LLP2217U | 22 | 64 | 165 | 56 | 16 | 7/8”UNF | 22.2 | 32 | 38 |
SF-LLP2518M | 25 | 60 | 150 | 40 | 20 | 22x1.5 | 25 | 34 | 40 |
SF-LLP2519M | 25 | 60 | 150 | 40 | 20 | 22x1.5 | 28 | 32 | 38 |
SF-LLP2820M | 28 | 50 | 155 | 30 | 50 | 30x2.0 | 30 | 48 | 50 |
SF-LLP2821M | 28 | 55 | 150 | 45 | 14 | 22x1.5 | 24 | 36 | 42 |
SF-LLP2822M | 28 | 55 | 150 | 45 | 15 | 24x1.5 | 24 | 37 | 43 |
SF-LLP2823M | 28 | 55 | 150 | 45 | 14 | 27x1.5 | 28 | 38 | 43 |

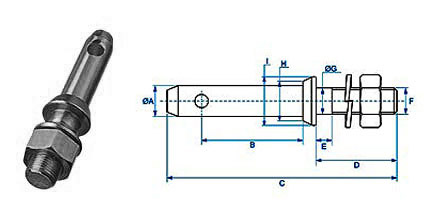

Specification Table
Lower Link Pin | |||||||||
Perno Per Attacco Attrezzi | |||||||||
ART. | A | B | C | D | E | F | G | H | I |
SF-LLP2824M | 28 | 58 | 147 | 48 | 10 | 27x1.5 | 27 | 37 | 43 |
SF-LLP2825M | 28 | 58 | 147 | 48 | 10 | 27x1.5 | 27 | 48 | 50 |
SF-LLP2826M | 28 | 60 | 150 | 45 | 14 | 27x1.5 | 22 | 38 | 44 |
SF-LLP2827M | 28 | 60 | 150 | 40 | 20 | 27x1.5 | 28 | 38 | 44 |
SF-LLP2828M | 28 | 60 | 150 | 40 | 20 | 27x1.5 | 22 | 38 | 44 |
SF-LLP2829M | 28 | 60 | 150 | 40 | 20 | 27x1.5 | 24 | 38 | 44 |
SF-LLP2830M | 28 | 62 | 147 | 38 | 20 | 27x1.5 | 28 | 48 | 50 |
SF-LLP2831M | 28 | 64 | 160 | 38 | 25 | 27x1.5 | 28 | 38 | 44 |
SF-LLP2832M | 28 | 65 | 160 | 30 | 40 | 30x2 | 30 | 48 | 50 |
SF-LLP2833M | 28 | 71 | 160 | 40 | 30 | 30x2 | 30 | 48 | 50 |
SF-LLP2834U | 28.6 | 51 | 133.5 | 42 | 11 | 7/8”UNF | 22 | 37 | 43 |
SF-LLP2835U | 28 | 51 | 159 | 60 | 16 | 9/8”UNF | 28.6 | 38 | 44 |
SF-LLP2836U | 28.6 | 51 | 149 | 36.5 | 24 | 3/4”UNF | 25.4 | 38 | 44 |
SF-LLP2837U | 28.6 | 57 | 159 | 60 | 16 | 9/8”UNF | 28.6 | 37 | 43 |
SF-LLP2838U | 28.6 | 60 | 149 | 51 | 9.5 | 9/8”UNF | 28.6 | 37 | 43 |
SF-LLP2839U | 28.6 | 60 | 149 | 50.8 | 9.5 | 1”UNF | 25.4 | 38 | 44 |
SF-LLP2840U | 28.6 | 60 | 149 | 54 | 6.3 | 3/4”UNF | 19 | 38 | 44 |
SF-LLP2841U | 28.6 | 60 | 149 | 38 | 22 | 7/8”UNF | 28.6 | 38 | 44 |
SF-LLP2842U | 28.6 | 60 | 136.5 | 35 | 12.7 | 7/8”UNF | 22 | 38 | 44 |
SF-LLP2843U | 28.6 | 60 | 145 | 44 | 12.7 | 7/8”UNF | 22 | 38 | 44 |
SF-LLP2844U | 28.6 | 63.15 | 160 | 54 | 14 | 7/8”UNF | 22.2 | 38 | 44 |
SF-LLP3645U | 36 | 54 | 149 | 48 | 16 | 9/8”UNF | 28.6 | 46 | 52 |
SF-LLP3646U | 36.5 | 58 | 149 | 45 | 14 | 1.3/8”UNF | 35 | 45 | 52 |
SF-LLP3647U | 36.5 | 61 | 165 | 60 | 11 | 27x1.5 | 27 | 48 | 50 |
