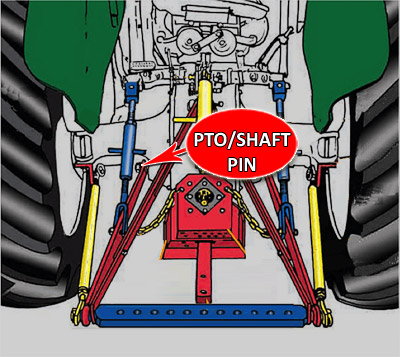

PTO Pins/Shaft Pins

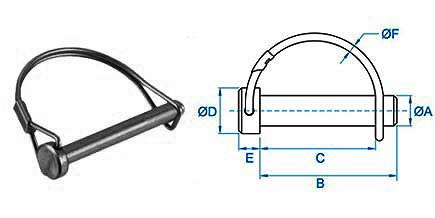

SHAFT LOCKING PIN / PTO (ROUND)
Specification Table

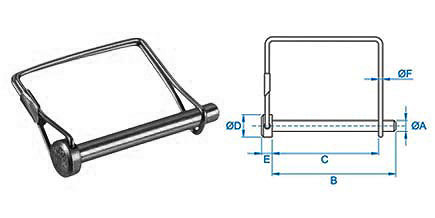

SHAFT LOCKING PIN / PTO PIN (SQUARE)
Specification Table

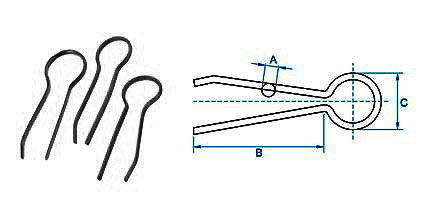

CLIP PINS
Specification Table
Usage / Application
Tractor Linkage Parts
Type of Part
Linkage Accessory
Model Name / Number
Tractor Linkage Parts
HSN Code
8708
Size
As per customer requirement
Application
Tractor Linkage Parts
Specification Table
×
SHAFT LOCKING PIN / PTO (ROUND)
ART.
A
B
C
D
E
F
SF-PTOR650
6
60
50
12
6
2.3
SF-PTOR657
6
67
57
12
6
2.3
SF-PTOR838
8
45
38
15
7
2.3
SF-PTOR860
8
70
60
15
7
2.3
SF-PTOR9557
9.5
67
57
16
7.5
2.3
SF-PTOR1038
10
45
38
15
7
2.3
SF-PTOR1060
10
70
60
15
8.50
2.3
SF-PTOR1189
11
99
89
19
10
2.3
Specification Table
×
SHAFT LOCKING PIN / PTO PIN (SQUARE)
ART.
A
B
C
D
E
F
SF-PTOS4538
4.5
46
38
10
5
2.3
SF-PTOS657
6
67
57
12
6
2.3
SF-PTOS863
8
70
63
15
7
2.3
SF-PTOS1080
10
90
80
18
8
2.3
SF-PTOS1267
12
75
67
20
10
2.3
Specification Table
×
CLIP PINS
ART.
A
B
C
SF-CLPP315
3X1.5
38
17
SF-CLPP525
5X2.5
56
27
