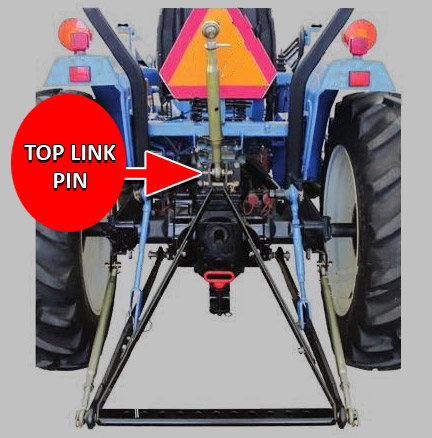

Top Link Pin

Top Link Pin Without Head

Special Top Link Pin

Usage / Application	Tractor Linkage Parts
Type of Part	Linkage Accessory
Model Name / Number	Tractor Linkage Parts
HSN Code	8708
Size	As per customer requirement
Application	Tractor Linkage Parts

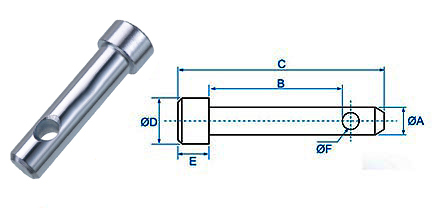

TOP LINK PIN
ART.	A	B	C	D	E	F	G
SF-TLP12040	12	40	15	15	11	55	6.3
SF-TLP12080	12	80	15	15	11	95	6.3
SF-TLP14040	14	40	15	17	12	55	8.3
SF-TLP14082	14	82	15	17	12	97	8.3
SF-TLP16040	16	40	15	20	13	55	8.3
SF-TLP16045	16	45	15	20	13	60	8.3
SF-TLP16070	16	70	15	20	13	85	8.3
SF-TLP16076	16	76	15	20	13	91	8.3
SF-TLP16082	16	82	15	20	13	97	8.3
SF-TLP16086	16	86	15	20	13	101	8.3
SF-TLP16096	16	96	15	20	13	111	8.3
SF-TLP16096	16	96	15	20	13	111	8.3
SF-TLP16100	16	100	15	20	13	115	8.3
SF-TLP16120	16	120	15	20	13	135	8.3
SF-TLP16125	16	125	15	20	13	140	8.3
SF-TLP16125	16	125	15	20	13	140	8.3
SF-TLP16146	16	146	15	20	13	161	8.3
SF-TLP19046	19	46	17	25	18	61	12
SF-TLP19052	19	52	17	25	18	67	12
SF-TLP19065	19	65	17	25	18	80	12
SF-TLP19070	19	70	17	25	18	85	12
SF-TLP19076	19	76	17	25	18	91	12
SF-TLP19086	19	86	17	25	18	101	12
SF-TLP19092	19	92	17	25	18	107	12
SF-TLP19096	19	96	17	25	18	111	12
SF-TLP19103	19	103	17	25	18	118	12
SF-TLP19106	19	106	17	25	18	121	12
SF-TLP19110	19	110	17	25	18	125	12
SF-TLP19120	19	120	17	25	18	135	12
SF-TLP19125	19	125	17	25	18	140	12
SF-TLP19145	19	145	17	25	18	160	12
SF-TLP19165	19	165	17	25	18	160	12
SF-TLP22055	22	55	17	28	21	70	12
SF-TLP22055	22	55	17	28	21	70	12
SF-TLP22076	22	76	17	28	21	91	12
SF-TLP22085	22	85	17	28	21	100	12
SF-TLP22095	22	95	17	28	21	110	12
SF-TLP22100	22	100	17	28	21	115	12
SF-TLP22106	22	106	17	28	21	121	12
SF-TLP22110	22	110	17	28	21	125	12
SF-TLP22125	22	125	17	28	21	140	12
SF-TLP22145	22	145	17	28	21	160	12
SF-TLP22155	22	155	17	28	21	170	12
SF-TLP22165	22	165	17	28	21	180	12
SF-TLP22185	22	185	17	28	21	200	12
SF-TLP22205	22	205	17	28	21	220	12
SF-TLP25076	25	76	20	31	24	91	12
SF-TLP25085	25	85	20	31	24	100	12
SF-TLP25095	25	95	20	31	24	110	12
SF-TLP25105	25	105	20	31	24	120	12
SF-TLP25110	25	110	20	31	24	125	12
SF-TLP25116	25	116	20	31	24	131	12
SF-TLP25126	25	126	20	31	24	141	12
SF-TLP25136	25	136	20	31	24	151	12
SF-TLP25145	25	145	20	31	24	160	12
SF-TLP25160	25	160	20	31	24	175	12
SF-TLP25180	25	180	20	31	24	195	12
SF-TLP25185	25	185	20	31	24	200	12
SF-TLP25205	25	205	20	31	24	220	12
SF-TLP28085	28	85	20	34	27	100	12
SF-TLP28095	28	95	20	34	27	110	12
SF-TLP28103	28	103	20	34	27	118	12
SF-TLP28116	28	116	20	34	27	131	12
SF-TLP28125	28	125	20	34	27	140	12
SF-TLP28130	28	130	20	34	27	145	12
SF-TLP28145	28	145	20	34	27	160	12
SF-TLP28152	28	152	20	34	27	167	12
SF-TLP28160	28	160	20	34	27	175	12
SF-TLP28180	28	180	20	34	27	195	12
SF-TLP28205	28	205	20	34	27	220	12
SF-TLP30150	30	150	21	36	32	168	12
SF-TLP32105	32	105	20	38	32	152	12
SF-TLP32125	32	125	20	38	32	163	12
SF-TLP32136	32	136	20	38	32	175	12

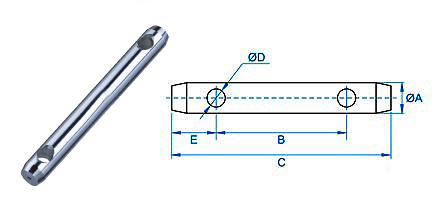

Top Link Pin Without Head
ART.	A	B	C	D	E
SF-TLPWOH19140	19	96	140	12	22
SF-TLPWOH19170	19	126	170	12	22
SF-TLPWOH19207	19	163	207	12	22
SF-TLPWOH19254	19	210	254	12	22
SF-TLPWOH25164	25	120	164	12	22

Special Top Link Pin
ART.	A	B	C	D	E	F
SF-PTLP120575	12	57	70	18	4	5
SF-PTLP160815	16	81	98	24	4.5	6.5
SF-PTLP160595	16	59	76	24	7	6.5
SF-PTLP190605	19	60	82	27	7	6.5
SF-PTLP190935	19	93	112	27	6	6.5
SF-PTLP221205	22	120	151	37	15	8.5
SF-PTLP221355	22	135	170	37	15	8.5
SF-PTLP251205	25	120	158	40	15	8.5
SF-PTLP251755	25	175	214	40	15	8.5
SF-PTLP281555	28	155	193	45	15	10.5
SF-PTLP190805	19	80	120	25	15	11.5
SF-PTLP220605	22	60	95	28	15	11.5
SF-PTLP250855	25	85	125	32	15	11.5
SF-PTLP280605	28	60	95	34	15	11.5
