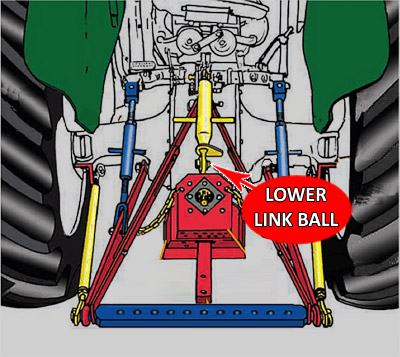

Lower Link Balls
BALL WITHOUT COLLAR
Specification Table
Ball (Double Bore)
Specification Table
Ball (With Cut)
Specification Table
SPACERS
Specification Table
Usage / Application
Tractor Linkage Parts
Type of Part
Linkage Accessory
Model Name / Number
Tractor Linkage Parts
HSN Code
8708
Size
As per customer requirement
Application
Tractor Linkage Parts
Specification Table
×

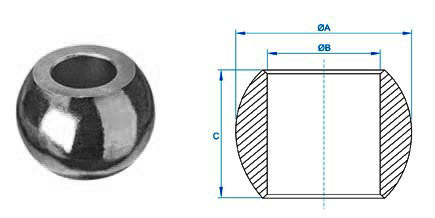

BALL WITHOUT COLLAR (HEAT TREATED 58-62 HRC - OPTIONAL)
BORE TOLERANCE A12/A13
ART.
B
A
C
SF-LLB001
16
28
20
SF-LLB002
16
32
25.4
SF-LLB003
19
44
35
SF-LLB004
22.1
44
35
SF-LLB005
22.1
48
35
SF-LLB006
28.4
48
35
SF-LLB007
25.4
50
38
SF-LLB008
25.4
50
40
SF-LLB009
28.4
50
38
SF-LLB010
35
54
35
SF-LLB011
22.1
56
35
SF-LLB012
22.1
56
45
SF-LLB013
25.4
56
35
SF-LLB014
25.4
56
45
SF-LLB015
28.4
56
35
SF-LLB016
28.4
62
45
SF-LLB017
28.4
63.5
45
SF-LLB018
28.4
64
45
SF-LLB019
28.4
64
54
SF-LLB020
37.1
64
45
SF-LLB021
38
64
45
SF-LLB022
37
85
57
SF-LLB023
51
85
57
Specification Table
×

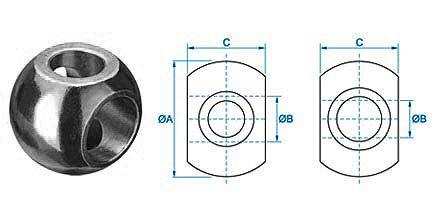

Ball (Double Bore)
Braccio 3 Punto Completo
ART.
A
B
C
SF001(22.1/28.7)45
56
22.1/28.7
44.5
Specification Table
×

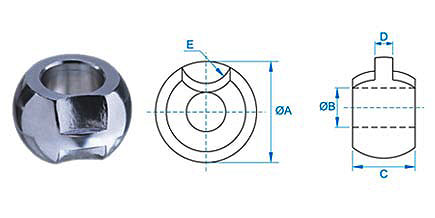

Ball (With Cut)
ART.
A
B
C
D
E
SF562235
56.5
22
35
10
R35
SF562845
56.5
28.6
44.5
10
R35
Specification Table
×
SPACERS
ART.
A
B
C
SF56287
28
56
7
SF64287
28
64
7
SF64387
38
64
7
