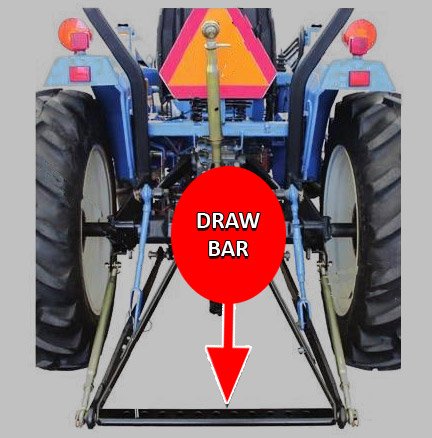

Draw Bar
Draw Bar (63x25)
Specification Table
Draw Bar (63x30)
Specification Table
Usage / Application
Tractor Linkage Parts
Type of Part
Linkage Accessory
Model Name / Number
Tractor Linkage Parts
HSN Code
8708
Size
As per customer requirement
Application
Tractor Linkage Parts

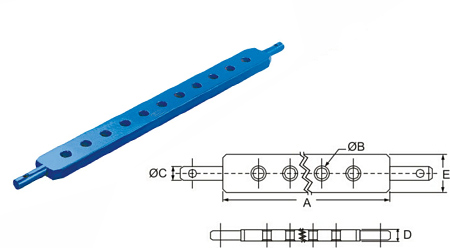

Specification Table
×
Draw Bar ( 63x25 )
ART.
No of Holes
lift Arm Spacing A (mm)
HoleB (mm)
Pin C (mm)
Thickness D (mm)
Width E (mm)
SF-DB00
7
508..00
16.00
15.50
16.00
50.00
SF-DB01
7
508..00
19.50
22..00
25.40
63.00
SF-DB02
11
660.40
19.50
22.00
25.40
63.00
SF-DB03
11
660.40
19.50
28.00
31.00
75.00
13
812.80
19.50
28.00
31.00
75.00
SF-DB04
13
812.80
19.50
28.00
31.00
75.00
SF-DB05
11
660.00
19.50
22.00
30.00
63.00
SF-DB06
7
812.80
29.00
28.00
31.00
75.00
SF-DB07
5
965.20
32.00
36.00
45.00
90.00

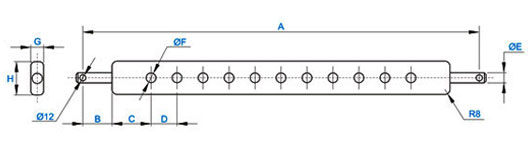

Specification Table
×
Draw Bar (63x30)
ART.
H
G
Holes
A
B
C
D
E
b
SF-DB08
63
30
7
1003
60
181
80
28.5
25.4
SF-DB09
63
30
7
683
49
113
54
22
20
SF-DB10
63
30
9
758
49
114
54
22
20
SF-DB11
63
30
9
781
60
114
54
28.5
20
SF-DB12
63
30
7
962
60
181
80
28.5
28
SF-DB13
63
30
9
796
57.5
125
55
21.6
22.2
SF-DB14
63
30
9
800
70
113.3
54
28
22
SF-DB15
63
30
11
766
60
60
54
28
20
SF-DB16
63
30
11
945
60
114
60
28
22
SF-DB17
63
30
9
800
58
118
22
22
22
SF-DB18
63
30
9
800
126
51
70
28
22
SF-DB19
63
30
11
765
52
60
54
22
22
SF-DB20
63
30
11
781
60
60
54
28
22
SF-DB21
63
30
9
770
55
110
55
22
20
SF-DB22
63
30
9
770
55
110
55
28
20
SF-DB23
63
30
3
440
55
110
55
22
20
SF-DB24
63
30
11
766
53
60
54
22
20
SF-DB25
63
30
11
780
60
60
54
28
20
SF-DB26
63
30
3
440
57
110
54
22
19
SF-DB27
63
30
9
800
70
114
54
28
22
SF-DB28
63
30
11
810
60
75
54
28.5
20
SF-DB29
63
30
9
620
50
71
47.5
22
26
